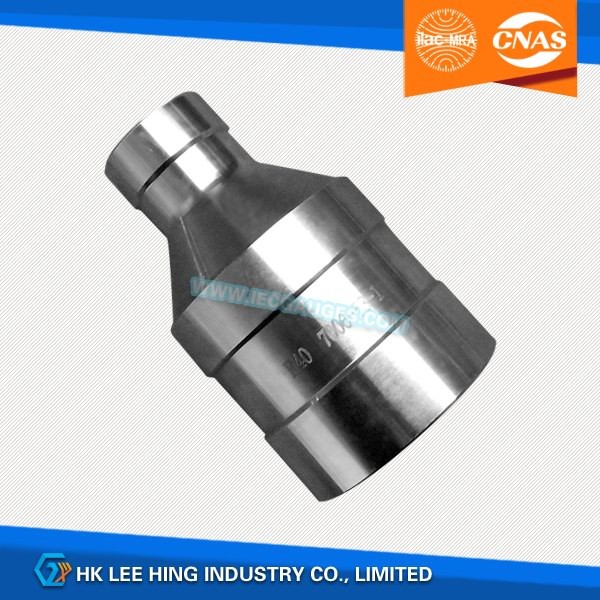

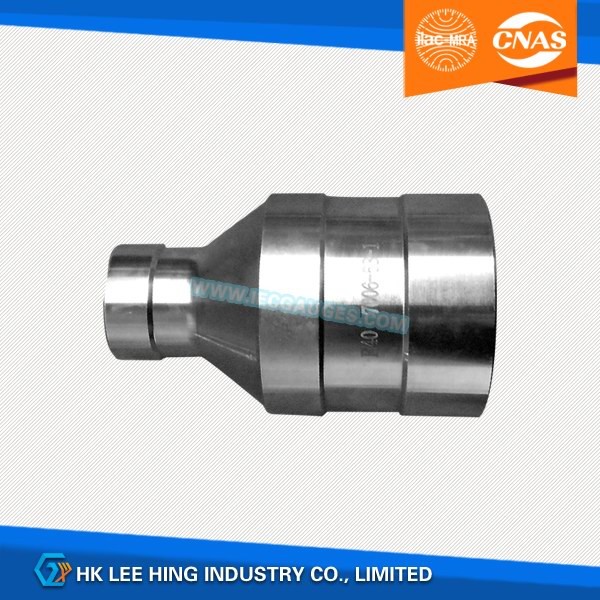

Gauge for finished lamps fitted with E40 caps for testing protection against accidental contact E40, 7006-53-1

Include ISO 17025 CNAS & ILAC Test Report
Item No.: 7006-53-1
Made in China
Product description: IEC60061-3: 7006-53-1 Gauge for Finished Lamps Fitted with E40 Caps for Testing Protection Against Accidental Contact. According to standard IEC 60061-3.

IEC60061-3: 7006-53-1 Gauge for Finished Lamps Fitted with E40 Caps for Testing Protection Against Accidental Contact

Gauge for finished lamps fitted with E40 caps for testing protection against accidental contact E40, 7006-53-1

Purpose:
To check protection against accidental contact.

Testing:

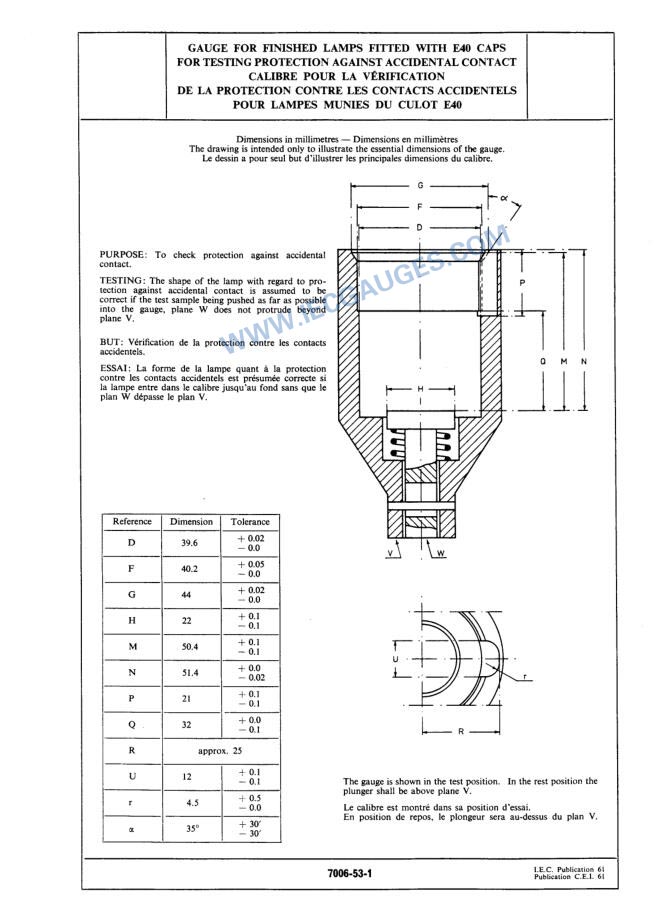

The shape of the lamp with regard to protection against accidental contact is assumed to be correct if the test sample being pushed as far as possible into the gauge, plane W does not protrude beyond plane V.
