Include ISO 17025 CNAS & ILAC Test Report
Item No.: 7006-27-7
Made in China

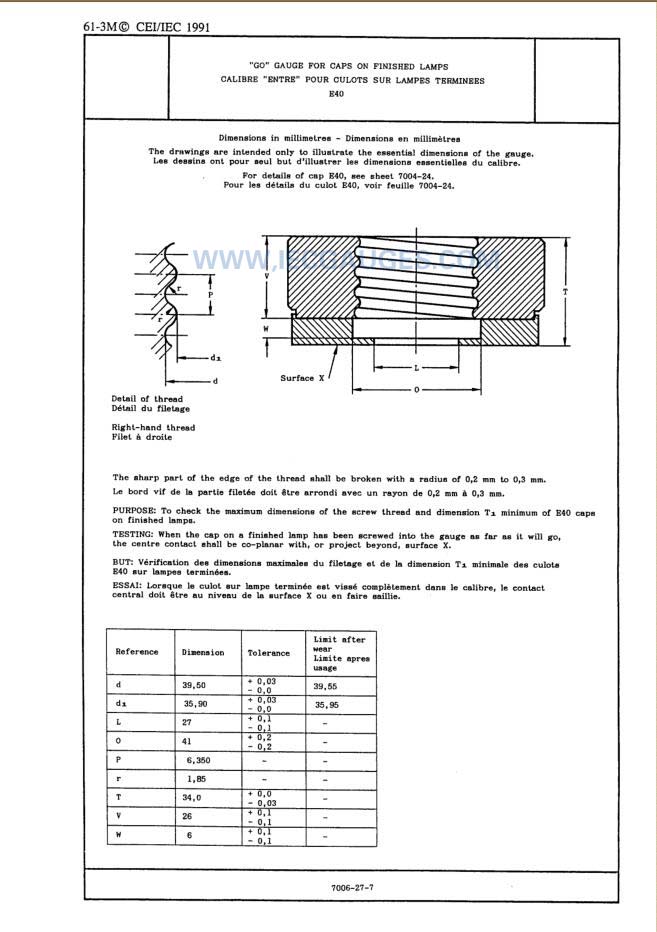

Product description: IEC60061-3: 7006-27-7 E40 Go Gauge for Caps on Finished Lamps. According to standard IEC 60061-3.
IEC60061-3: 7006-27-7 E40 Go Gauge for Caps on Finished Lamps

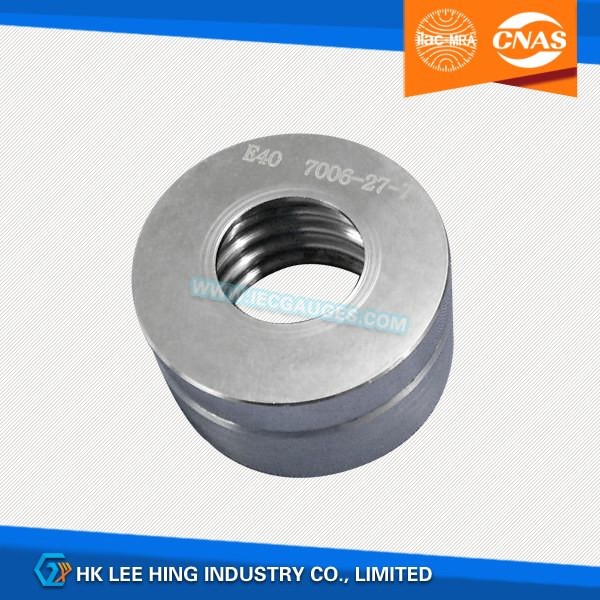

Go gauge for caps on finished lamps E40, 7006-27-7
Purpose:
To check the maximum dimensions of the screw thread and dimension T1 minimum of E40 caps on finished lamps.
Testing:
When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with, or project beyond surface X.
