Include ISO 17025 CNAS & ILAC Test Report
Item No.: 7006-54-2
Made in China
Product description: The application of this gauge is restricted to the following lamps when they are fitted with E14 caps, in accordance with sheet 7004-23: Candle lamps Round bulb lamps Domestic tubular lamps Pygmy lamps.

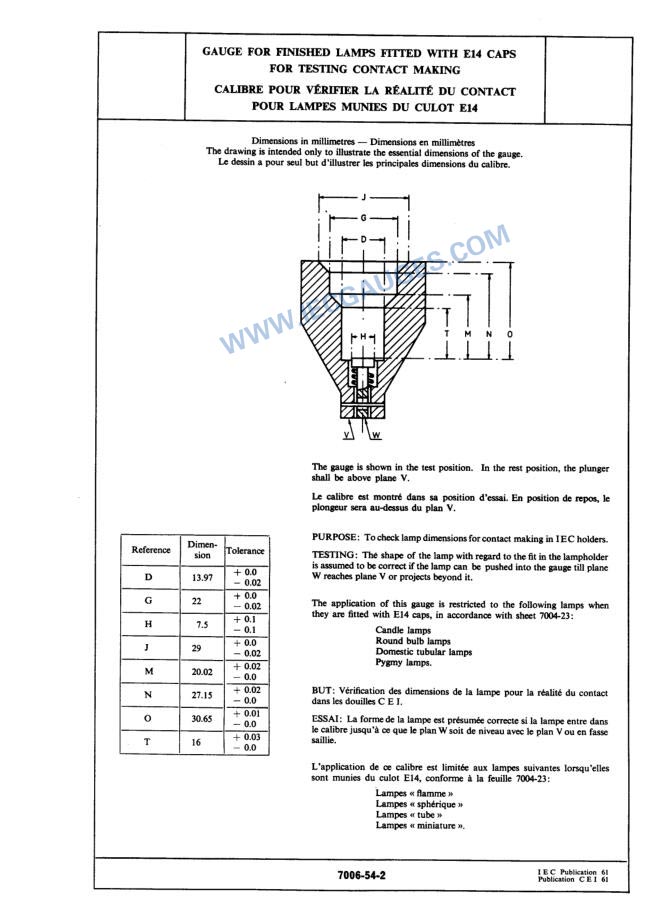

The gauge is shown in the test position. In the rest position, the plunger shall be above plane V.
PURPOSE:
To check lamp dimensions for contact making in IEC holders.
TESTING:
The shape of the lamp with regard to the fit in the lampholder is assumed to be correct if the lamp can be pushed into the gauge till plane W reaches plane V or projects beyond it.
The application of this gauge is restricted to the following lamps when they are fitted with E14 caps, in accordance with sheet 7004-23:
Candle lamps
Round bulb lamps
Domestic tubular lamps
Pygmy lamps.
