B15d Holders Torque Gauges of IEC60968 Figure 3

Include ISO 17025 CNAS & ILAC Test Report
Item No.: LX-B15N
Made in China

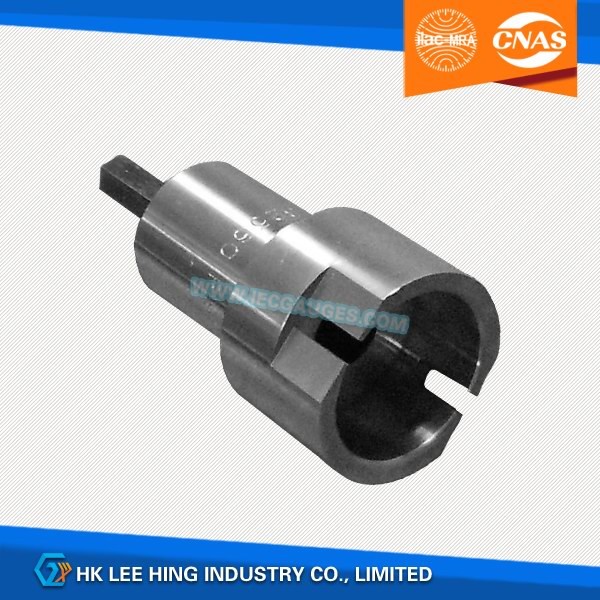

Product description: Holder for Torque Test on Lamps with Bayonet Caps.

Objective: To detect the lamp holder of mechanical strength.

Torsion resistance
The cap shall remain firmly attached to the bulb or that part of the lamp which is used for screwing the lamp in or out when subjected to the torque levels listed below.

B15d.............................................. 1,15 Nm

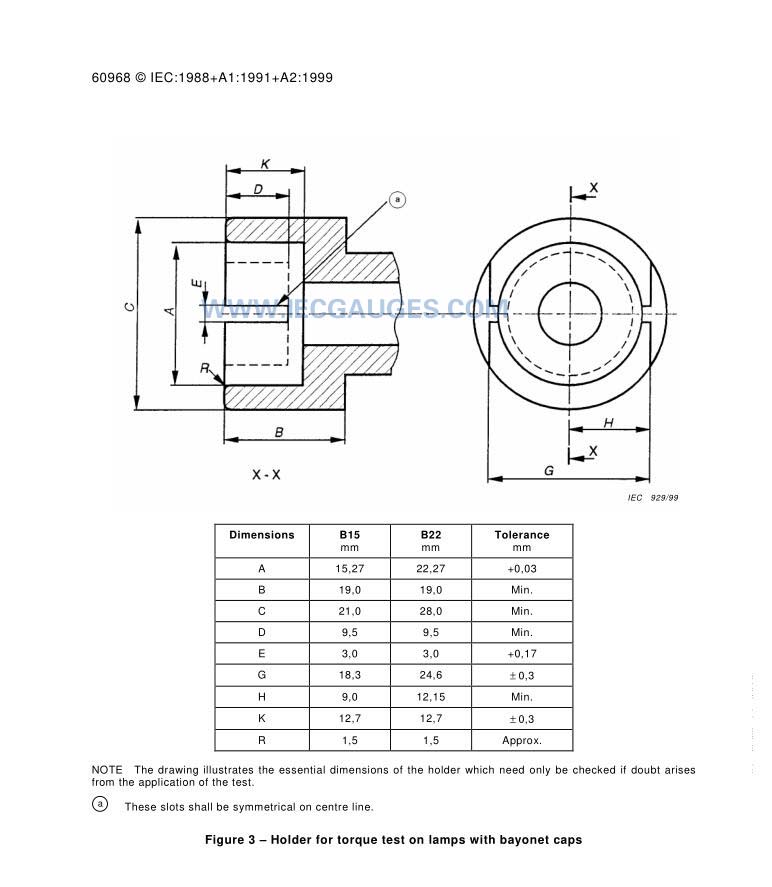

The test is made by means of the test holders shown in figures 3.

Figure 3.jpg
