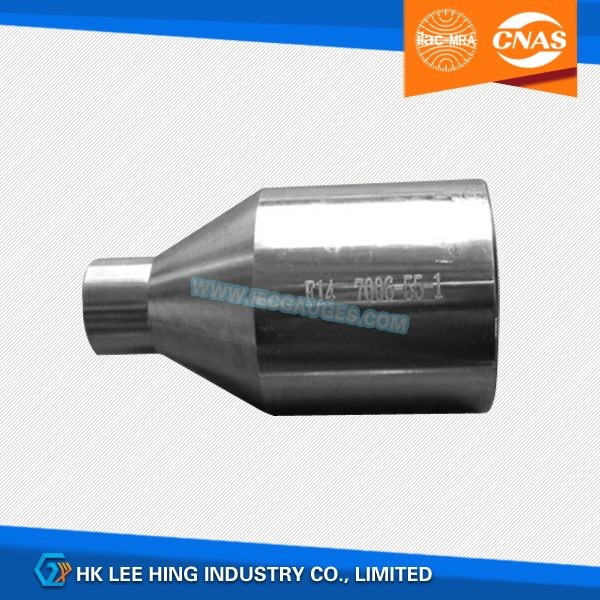

7006-55-2 Gauge for Finished Lamps Fitted with E14 Caps

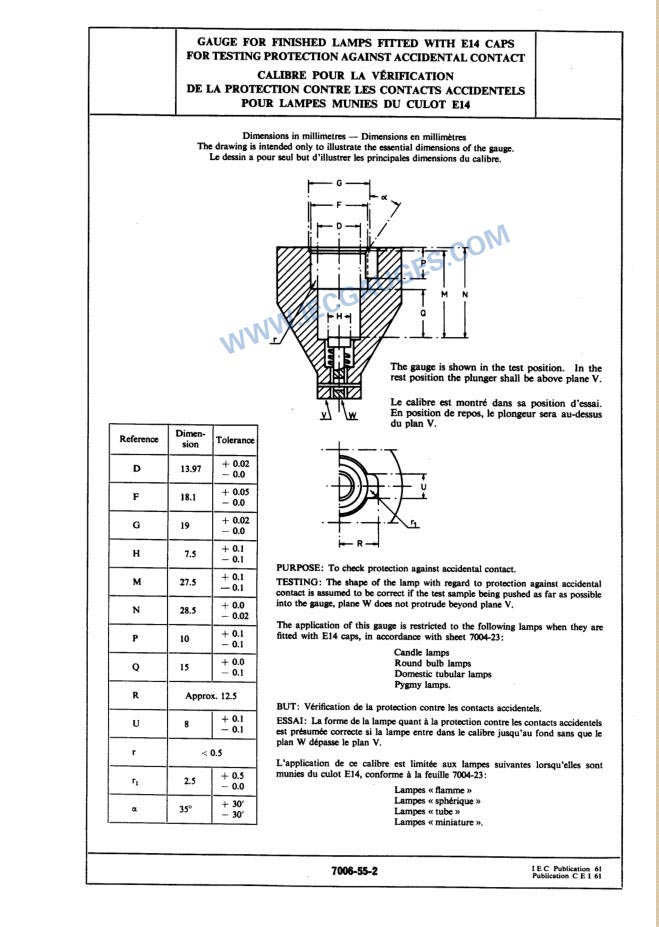

The gauge is shown in the test position. In the rest position, the plunger shall be above plane V.

The gauge is shown in the test position. In the rest position the plunger shall be above plane V.

PURPOSE:

To check protection against accidental contact.

TESTING:

The shape of the lamp with regard to protection against accidental contact is assumed to be correct if the test sample being pushed as far as possible into the gauge, plane W does not protrude beyond plane V.

The application of this gauge is restricted to the following lamps when they are fitted with E14 caps, in accordance with sheet 7004-23:
Candle lamps
Round bulb lamps
Domestic tubular lamps
Pygmy lamps.
